We maintain a fleet of late-model Charmilles Wire EDMs (including multiple twin-wire machines), RAM EDM capability, high-performance Okuma vertical mills, and turning. All equipment is regularly maintained and calibrated for consistent accuracy.
| Machine | X (mm) | Y (mm) | Z travel (mm) | Max part height | U/V | Notes |
|---|---|---|---|---|---|---|
| Charmilles 6050 Twin Wire (3 machines) | 630 | 400 | 160 | 250 mm | ±48 mm | Submerged cutting only |
| Charmilles 2050 Twin Wire (3 machines) | 320 | 220 | 160 | 250 mm | ±48 mm | Submerged cutting only |
| Charmilles 6020 SI | 630 | 400 | 162 | 250 mm | ±50 mm | Submerged cutting only |
| Agie 150 HSS | 300 | 200 | 251 | 250 mm | ±30 mm | Part up to 810 × 580 mm |
| Charmilles 4000 | 450 | 320 | 162 | 250 mm | ±50 mm | Submerged cutting only |
| Charmilles 2000 | 320 | 220 | 116 | 260 mm | ±48 mm | About 150 mm when fully submerged |
| Charmilles 310 | 400 | 250 | 400 | 400 mm | U 400 / V 250 | Auto-thread up to 300 mm |
| Charmilles 290 | 400 | 250 | 200 | 200 mm | U 400 / V 250 | Part up to 850 × 500 mm |
Z travel is how far the head moves. Max part height is the tallest workpiece we cut on that machine. On the 6050, 2050, 6020, and 4000 that limit is 250 mm, because those machines cut submerged.
Two high-performance 3-axis CNC vertical machining centers delivering the rigidity, speed, and accuracy required for both hard milling of tool steels and high-speed machining of aluminum and plastics.
Precision die-sinking EDM with 24-position Erowa automatic electrode changer and C-axis. Supports detailed work and small cavities using customer-supplied or sourced electrodes.
CNC teach lathe with Siemens 828D control. Rigid construction suitable for precision turning, prototypes, and small production runs.

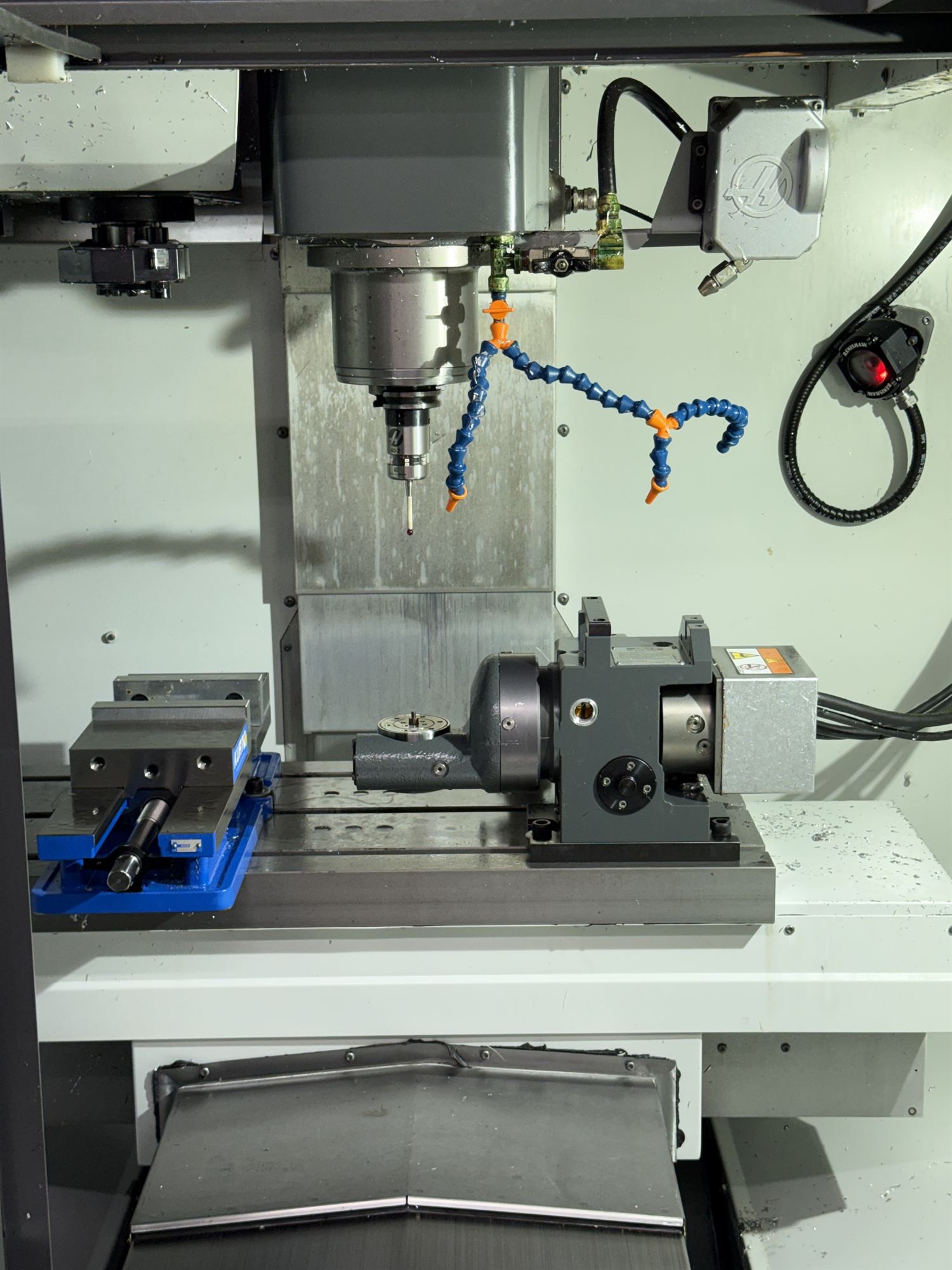

Haas Super Mini Mill with a 5-axis rotary, used for small precision work alongside the Okuma mills.
Inspection on the floor includes a Nikon video measuring system, a height gage, and indicator setups.

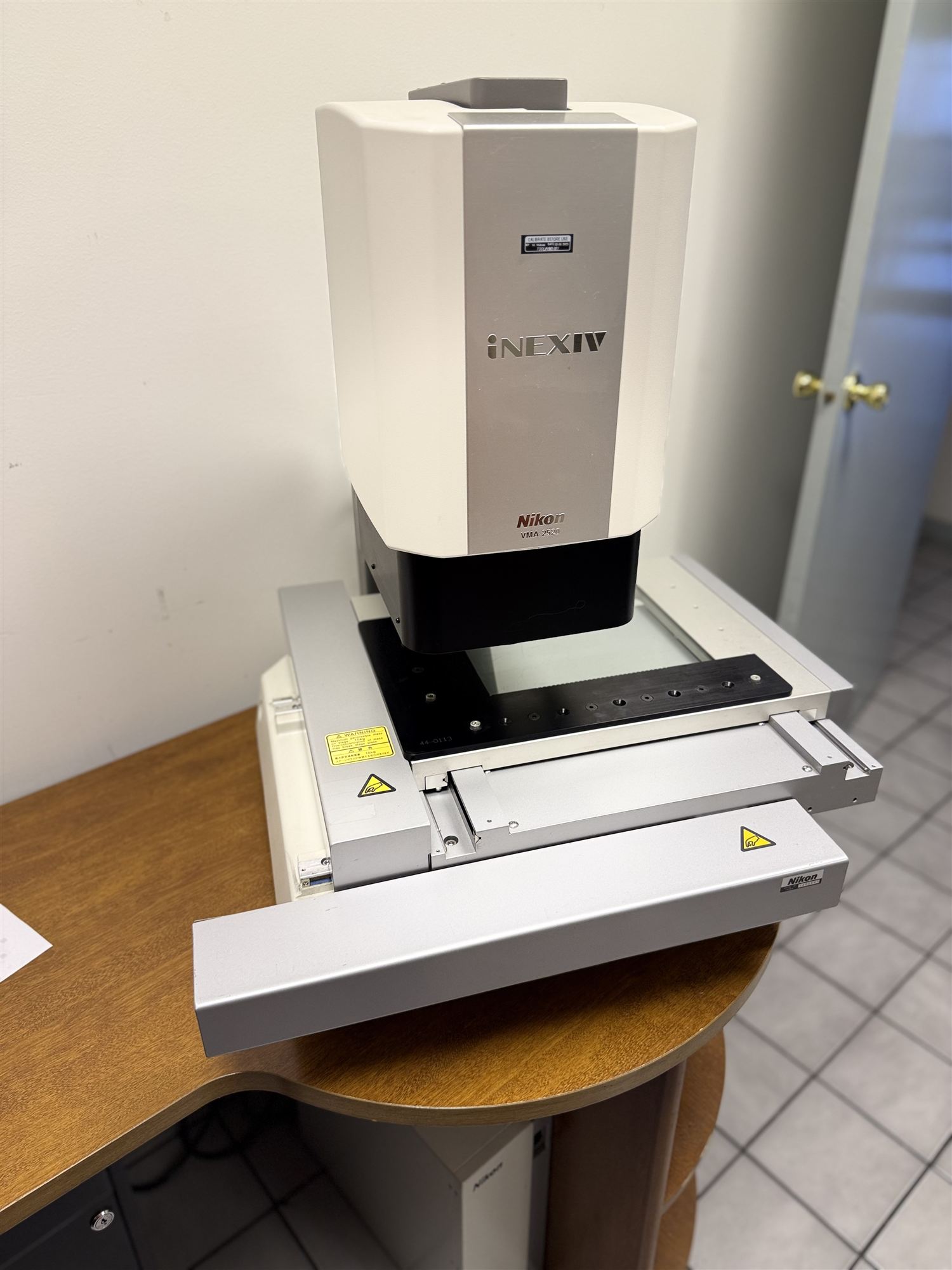

Nikon iNEXIV VMA-2520
CNC video measuring system for small parts and fine features. Measuring stroke is 250 × 200 × 200 mm, with a 0.1 µm readout, vision autofocus, and a 73.5 mm working distance. XY accuracy is 2 + 8L/1000 µm.

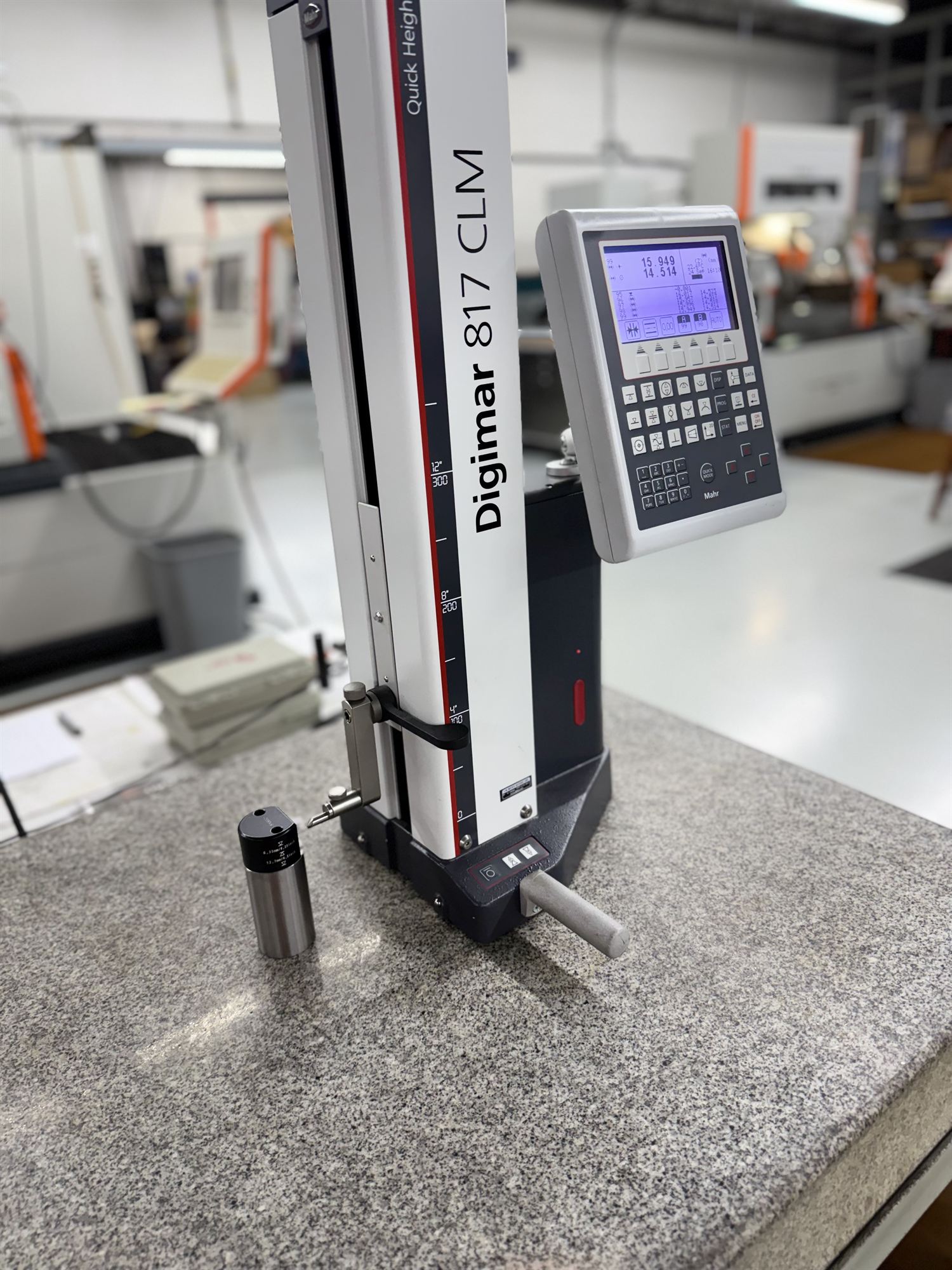

Mahr Digimar 817 CLM height gage

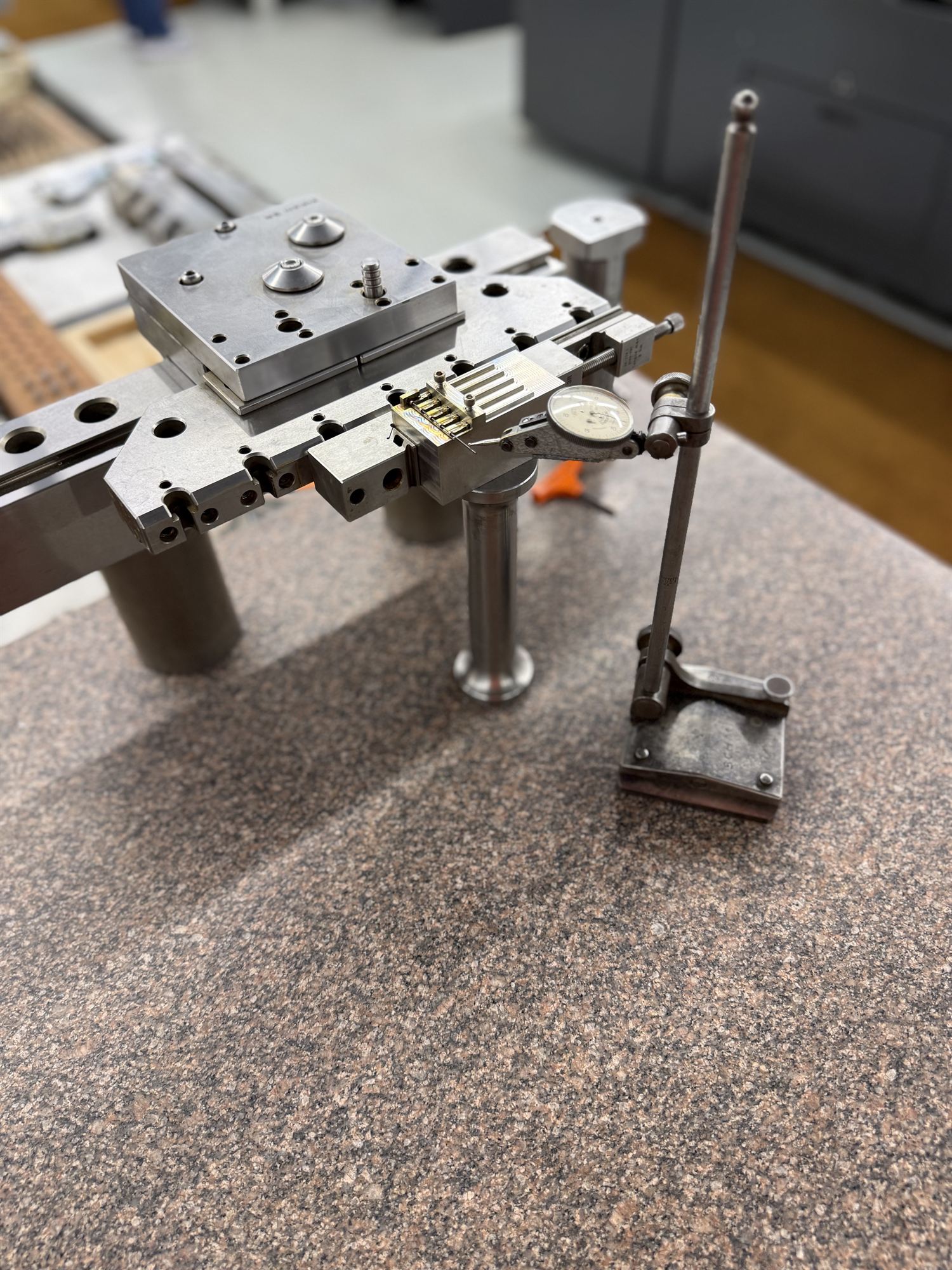

Indicator setup on a small fixture
